cosmetics / snacks automatic heat-shrink packing m

Large
Model: QD-100
Price:
Point:
cosmetics / snacks automatic heat-shrink packing machine
This machine adopts PLC programmable control, man-machine interface operation.

QD-100cosmetics / snacks automatic heat-shrink packing mDetails:

Main characteristic:

1.cosmetics / snacks automatic heat-shrink packing machine adopts PLC programmable control, man-machine interface operation.
2.Fully enclosed packaging.
3.(cosmetics / snacks automatic heat-shrink packing machine)Automatic feeding, wrapping film, bag, seal cutting, collection of waste, leveling, shrink, packaging and finished in one operation.
4.Thermostatic super fine aluminum cutter, anti-adhesive, sealing line fine, no coke, no smoke, zero pollution.
5 (achine)Cutting knife to the packaging will automatically rebound.
6 Packaging size can be adjusted without changing the mold.
7 (achine)All sets of PTFE insulated conveyor tube, not hot, does not harm the film.
8 Shrink dual circulation of hot air chamber system, the temperature can be adjusted.
9 Conveyor motor adopts stepless variable speed motor, long life, low noise.

Applications:

Pharmaceutical, food, stationery, cosmetics, electronic products, toys and so on.

Performance parameter:

Model

QD-100

Machine size

L1665×W850×H13809(mm)
L1300×W713×H1450(mm)

Max packaging size

550×450×120(mm)

Max sealing size

550×450(mm)

Machine weight

475kg

powder

11kw

Work powder

1500-1800/H

Power supply

3ø/380V 50/60HZ

2) Outer bag is heat sealing,serrated knife cutting,to make three or four-side sealing.

3)( inner and outer triangle Europe flower and fruit tea packing machine) Outer bag can equip easy-tear.

4) 4-head electronic scale weighting,high measurement accuracy; Measuring cup equipment or screw measuring equipment can be equipped,flexible and versatile.

5)( inner and outer triangle Europe flower and fruit tea packing machine) Inner and outer bag can be finished on the same machine,space and human resources saving, low much fee.

6) Green tea,black tea,flower tea,scented tea,health tea,assorted Chinese herbal tea,and other tea blended with small granule,strip quantitative packing.

7) Controlled by PLC,fast in packing,stable in running,low malfunctions rate,low energy waste.

Machine details

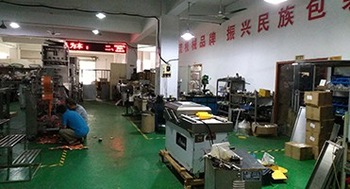

Our company

Our service

1) Training for client by two ways.One is clients come to our factory to learn how to operate the machine and the other is by teaching video.

2) Offer overseas service if it is necessary for clients,but clients should pay the train for our engineer.

3) Offer easily damaged parts for clients within one year.

Costomer photo
